771 MAGNUS
GLOSS BLACK (B)
DIAMETERS
- 17"
- 18"
- 20"
BOLT PATTERNS
- 5x150
- 5x4.50
- 5x5.00
- 5x5.50
- 6x135
- 6x5.50
- 8x170
- 8x180
- 8x6.50
U.S. PATENT PENDING
KEY FEATURES:
• Exceptionally Strong A356 Aluminum Alloy
• T6 Heat Treated for Maximum Strength
• Classic mesh spoke design with milled accents
• Bolt-on Center Cap with Signature Gear Off Road Logo
• Industry-Leading 2500 lb. to 3700 lb. Load Ratings
• Lifetime Structural Warranty & 1 Year Finish Warranty
OVERVIEW:

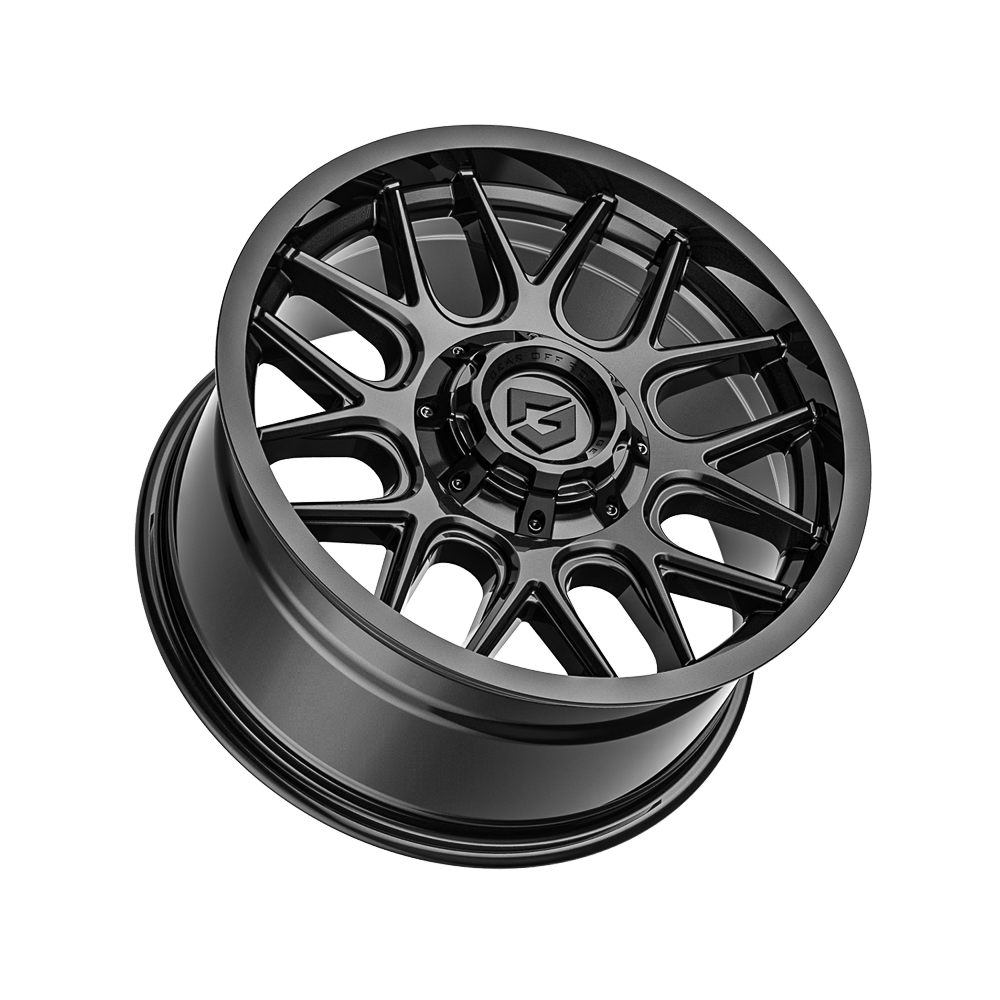

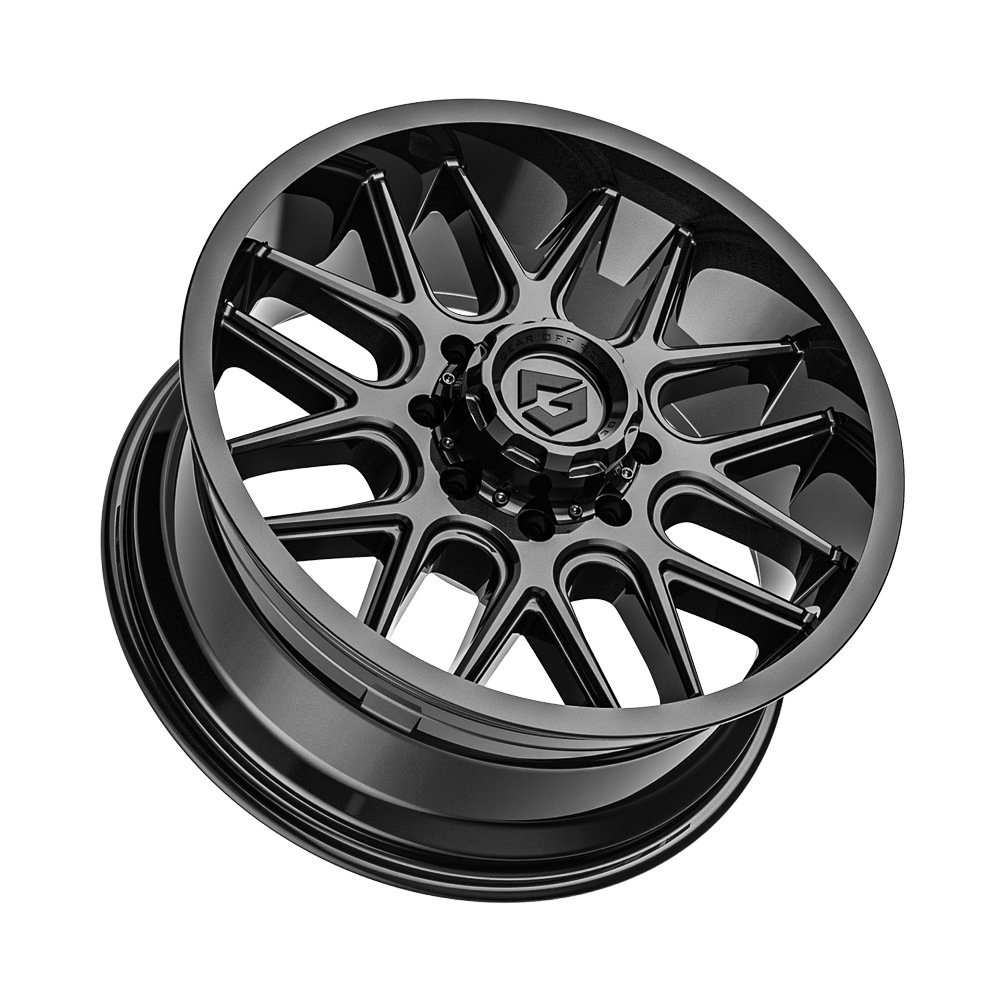

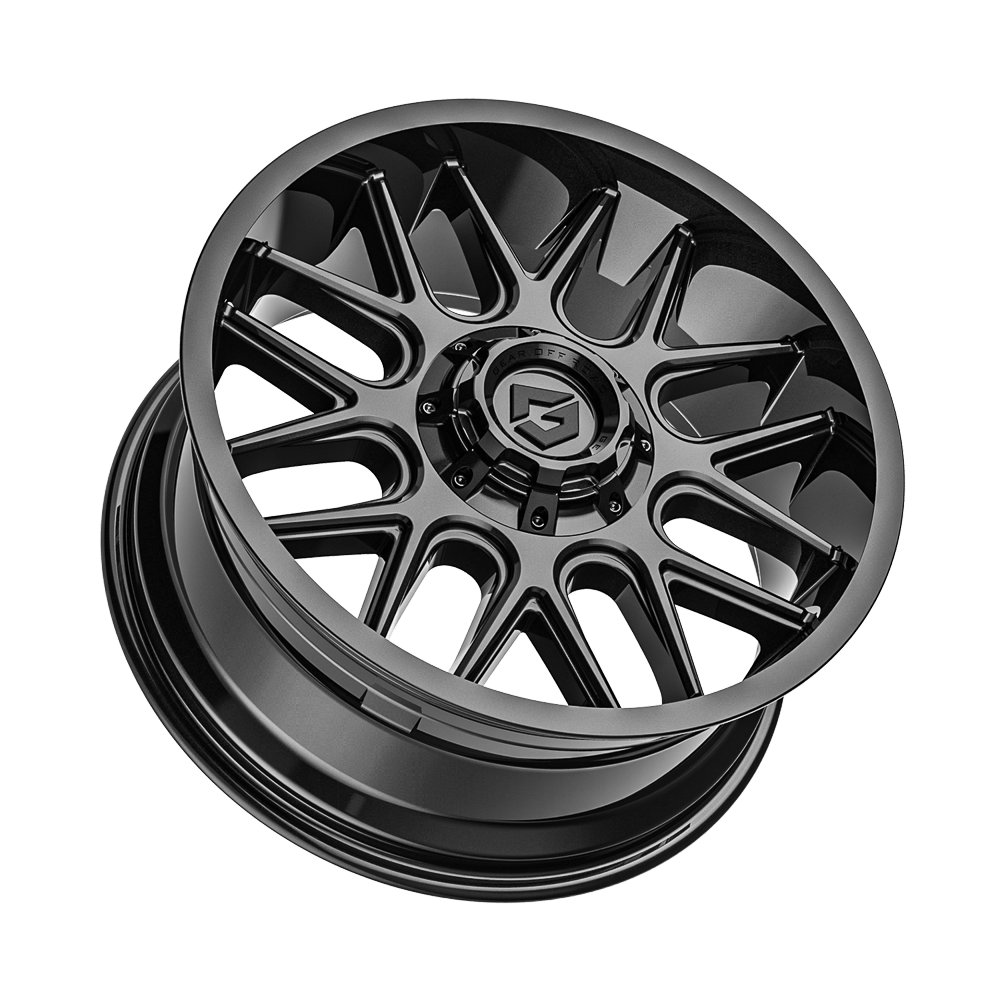

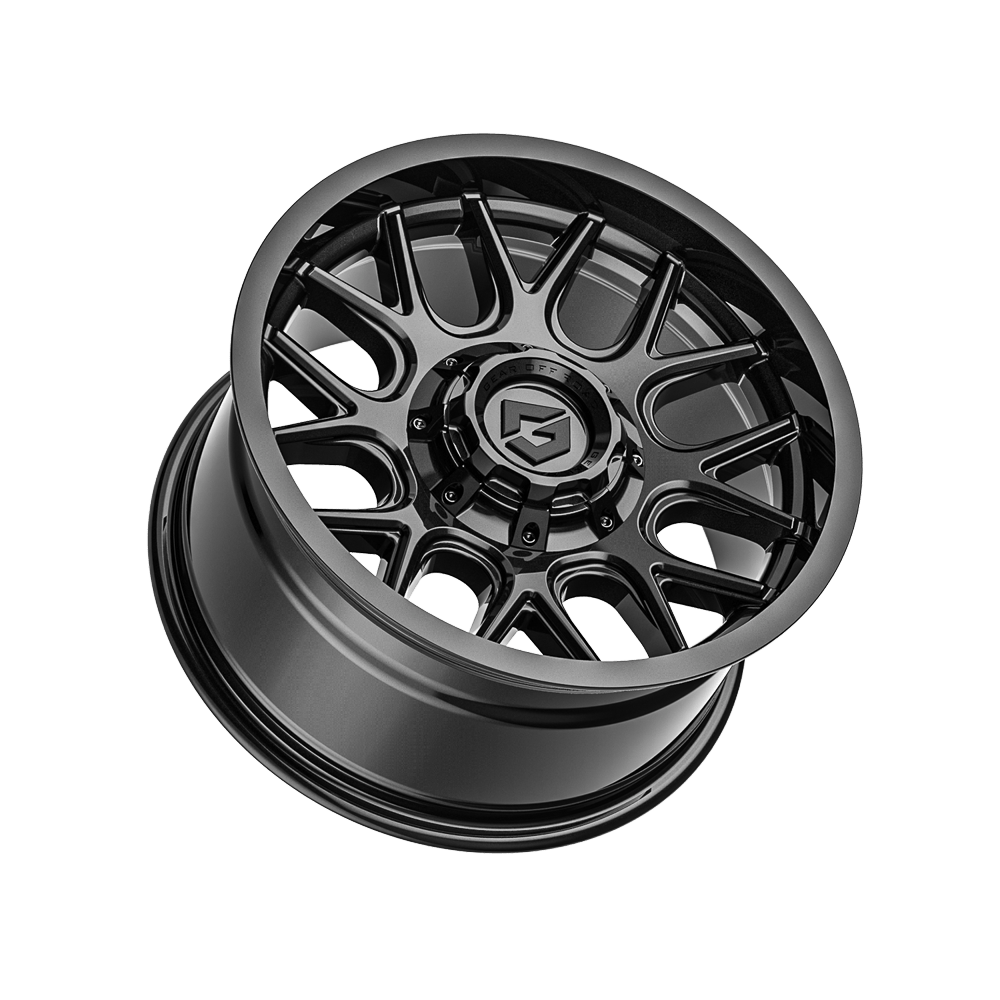

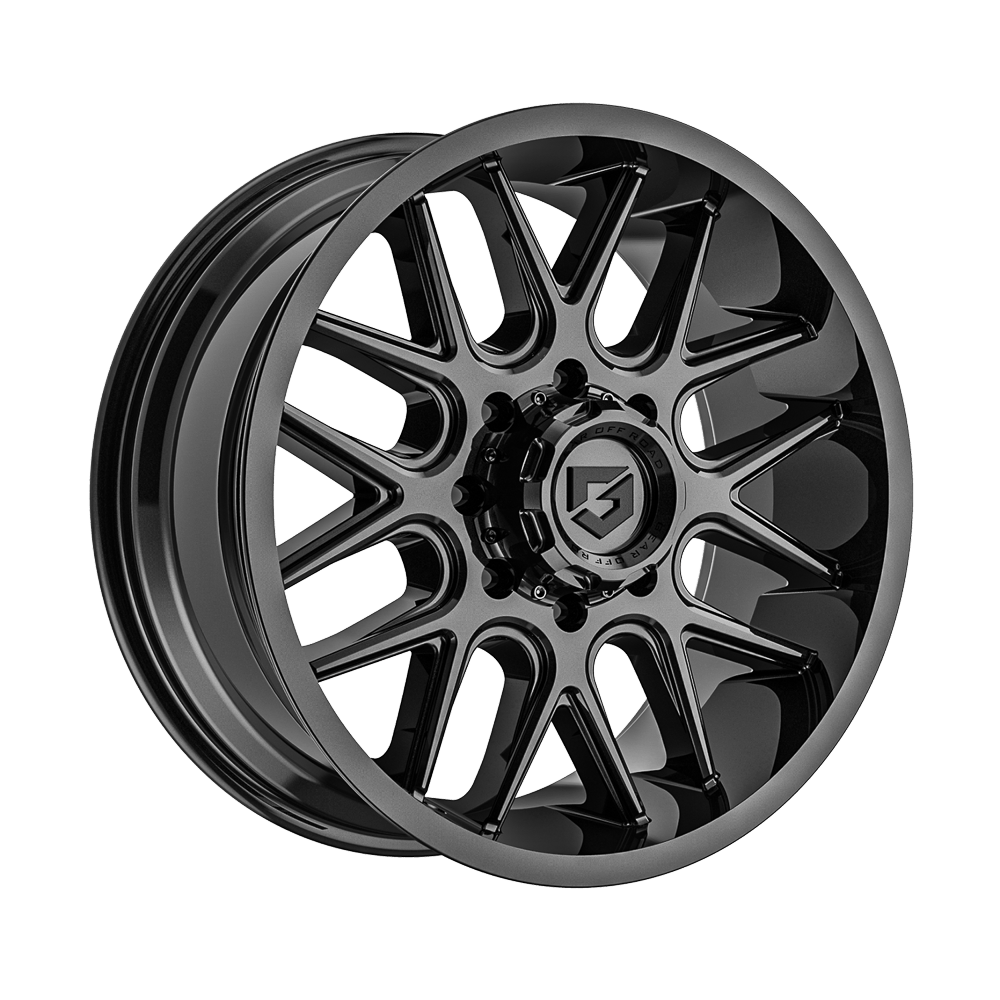

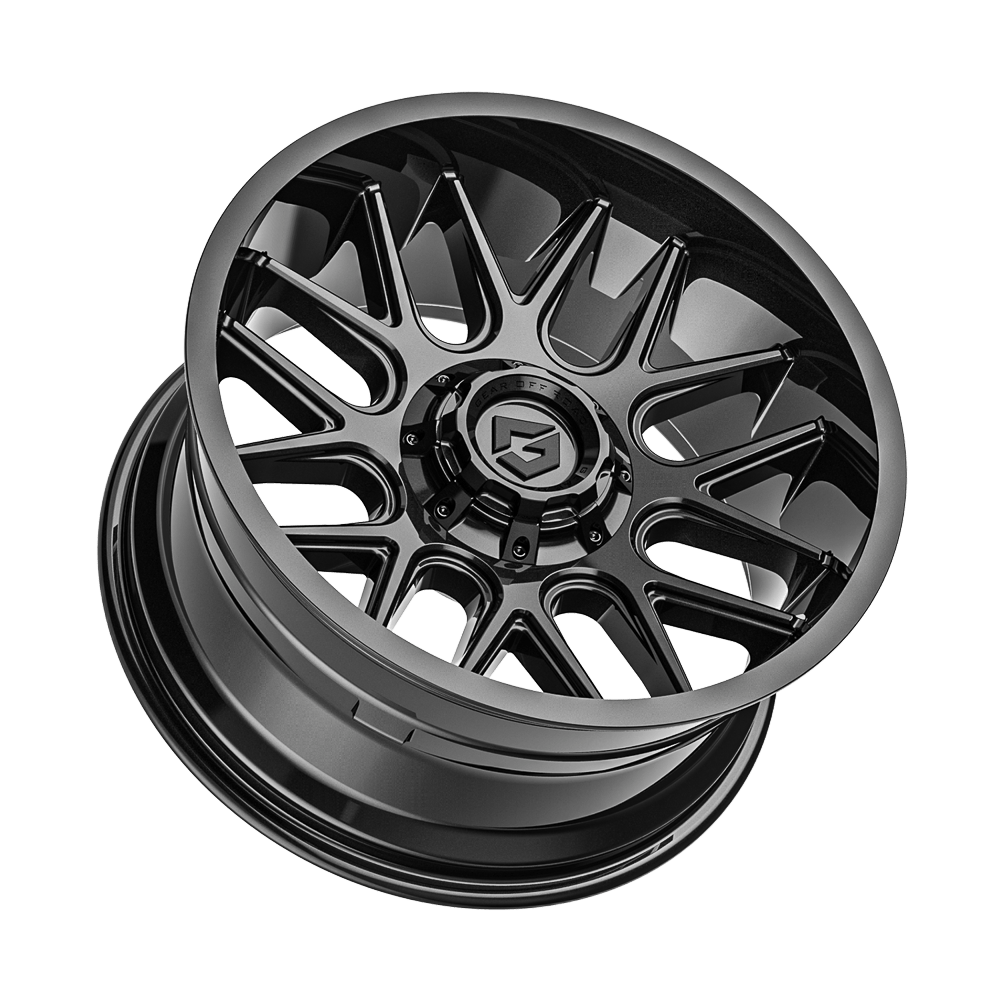

The 771 Magnus features a super strong and lightweight mesh spoke design that’s been further strengthened for off road vehicles with the added shoulders between every spoke. This exclusively pitch-black wheel is a perfect fit to elevate the look and performance of any truck.
* Vehicles equipped with high-capacity axle options will require cap spacers to clear the cap (Applies to Ford Super Duty trucks only). Contact us for more info.
DIAMETER OPTIONS
17x9
18x9
20x9
20x10
SPECIFICATIONS
| Part number | Wheel size | Bolt pattern | Offset (MM) | Back Spacing | Hub bore (MM) | Load Rating | Cap | Lip Depth | MSRP | |
|---|---|---|---|---|---|---|---|---|---|---|
| 771B-2095218 | 20X9 | 5X5.50/5X150 | +18 | 5.71 | 110.00 | 2500 | CAP-6C2-BB21 | 1.50 | $402.00 | |
| 771B-2096818 | 20X9 | 6X135/6X5.50 | +18 | 5.71 | 108.00 | 2500 | CAP-6C2-BB21 | 1.50 | $402.00 | |
| 771B-2098718 | 20X9 | 8X170 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-BB21 | 1.50 | $402.00 | |
| 771B-2098918 | 20X9 | 8X180 | +18 | 5.71 | 124.30 | 3700 | CAP-8L2-BB21 | 1.50 | $402.00 | |
| 771B-2105225 | 20X10 | 5X5.50/5X150 | -25 | 4.52 | 110.00 | 2500 | CAP-6C2-BB21 | 2.20 | $434.00 | |
| 771B-2106825 | 20X10 | 6X135/6X5.50 | -25 | 4.52 | 108.00 | 2500 | CAP-6C2-BB21 | 2.20 | $434.00 | |
| 771B-7900500 | 17X9 | 5X4.50/5X5.00 | +00 | 5.00 | 78.10 | 2500 | CAP-6C2-BB21 | 1.52 | $312.00 | |
| 771B-7906800 | 17X9 | 6X135/6X5.50 | +00 | 5.00 | 108.00 | 2500 | CAP-6C2-BB21 | 1.52 | $312.00 | |
| 771B-7908100 | 17X9 | 8X6.50 | +00 | 5.00 | 125.20 | 3700 | CAP-8L2-BB21 | 1.52 | $312.00 | |
| 771B-8906818 | 18X9 | 6X135/6X5.50 | +18 | 5.71 | 108.00 | 2500 | CAP-6C2-BB21 | 0.91 | $352.00 | |
| 771B-8908118 | 18X9 | 8X6.50 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-BB21 | 0.91 | $352.00 | |
| 771B-8908718 | 18X9 | 8X170 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-BB21 | 0.91 | $352.00 | |
| 771B-8908918 | 18X9 | 8X180 | +18 | 5.71 | 124.30 | 3700 | CAP-8L2-BB21 | 0.91 | $352.00 | |
