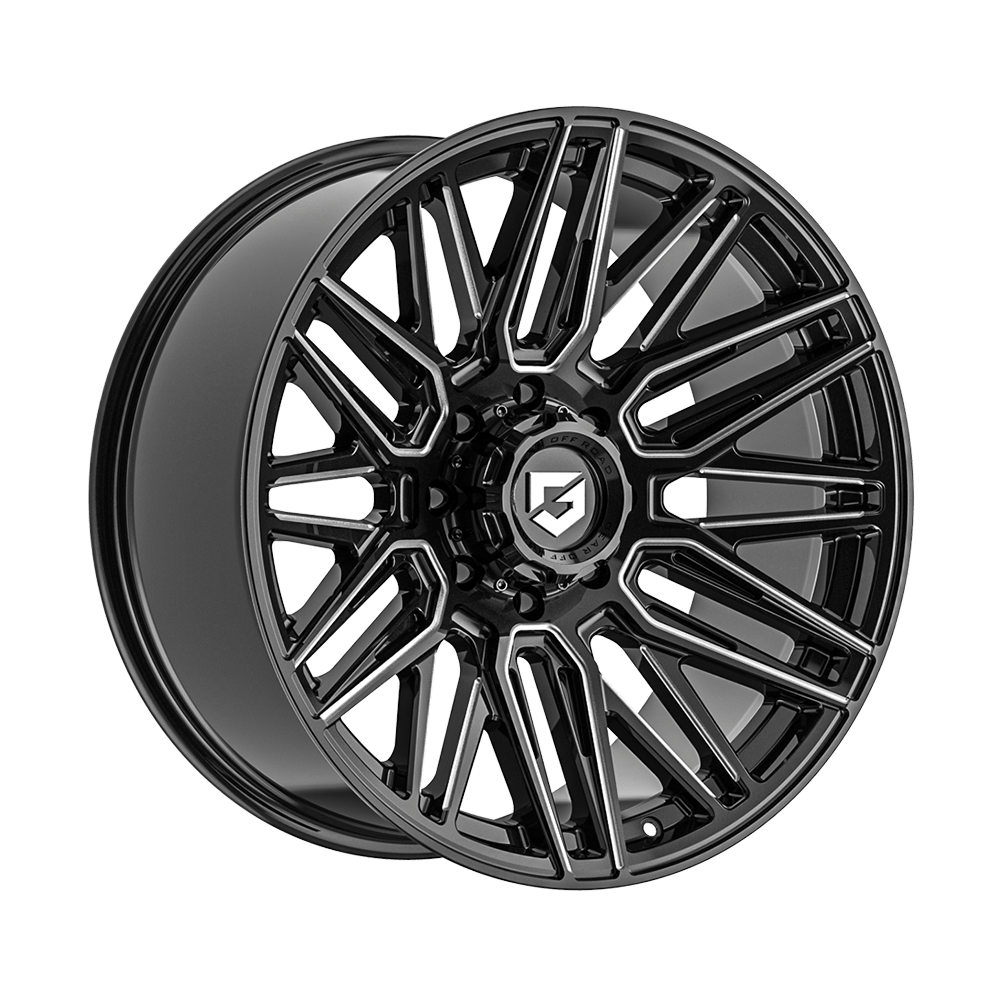

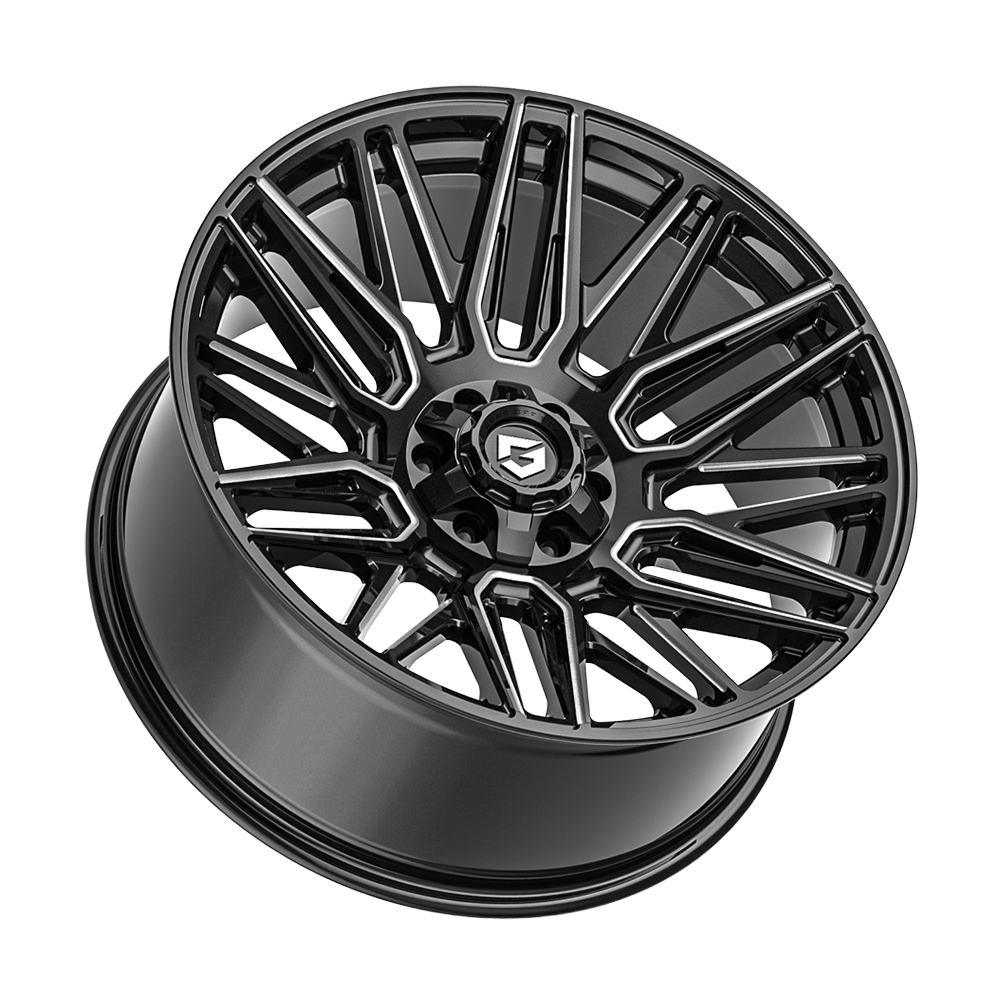

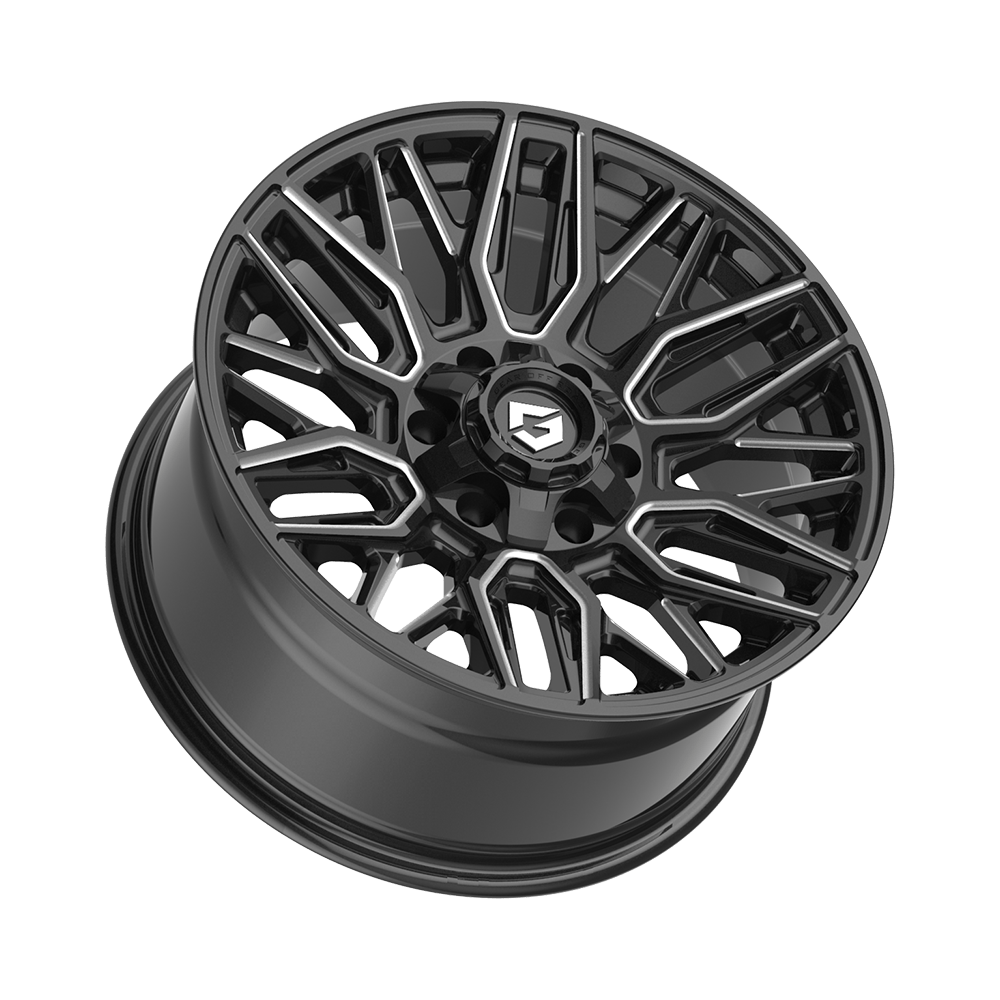

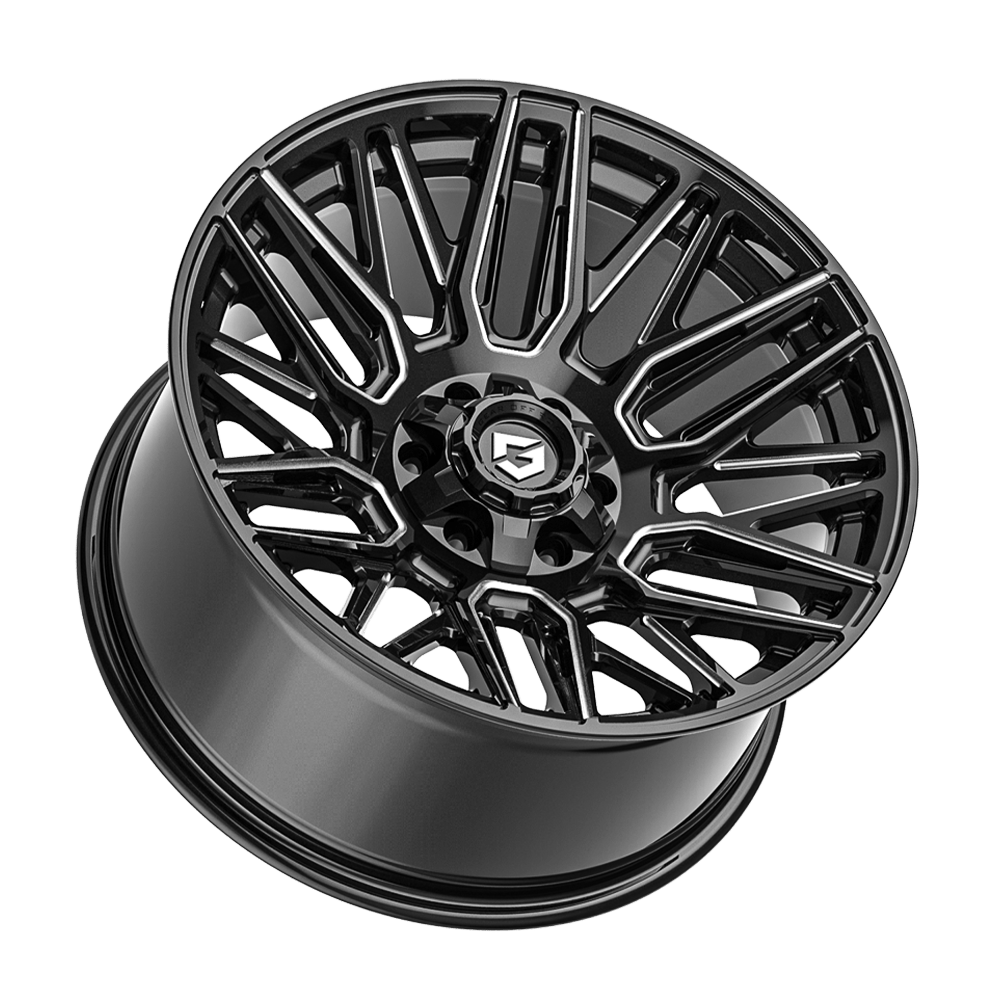

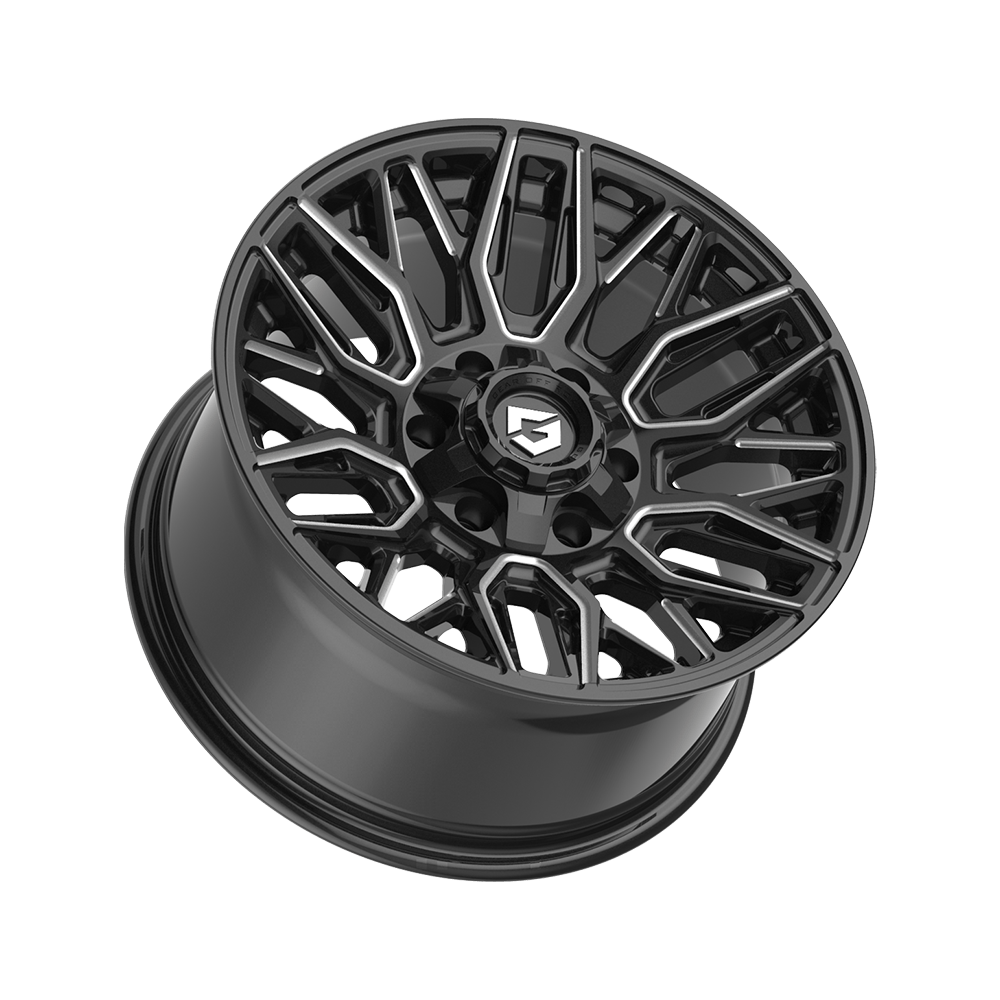

770 EDGE
GLOSS BLACK MILLED (BM)
DIAMETERS
- 17"
- 18"
- 20"
- 22"
BOLT PATTERNS
- 5x150
- 5x5.00
- 5x5.50
- 6x135
- 6x5.50
- 8x170
- 8x180
- 8x6.50

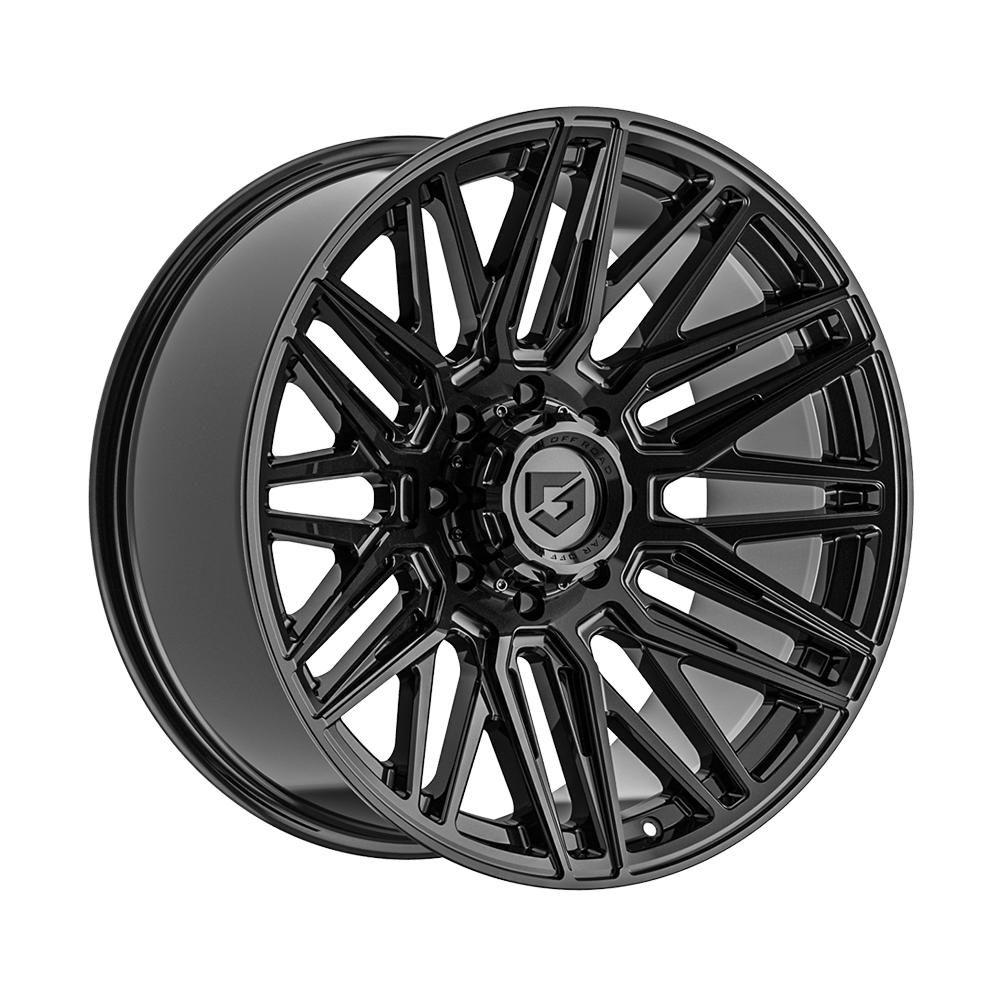

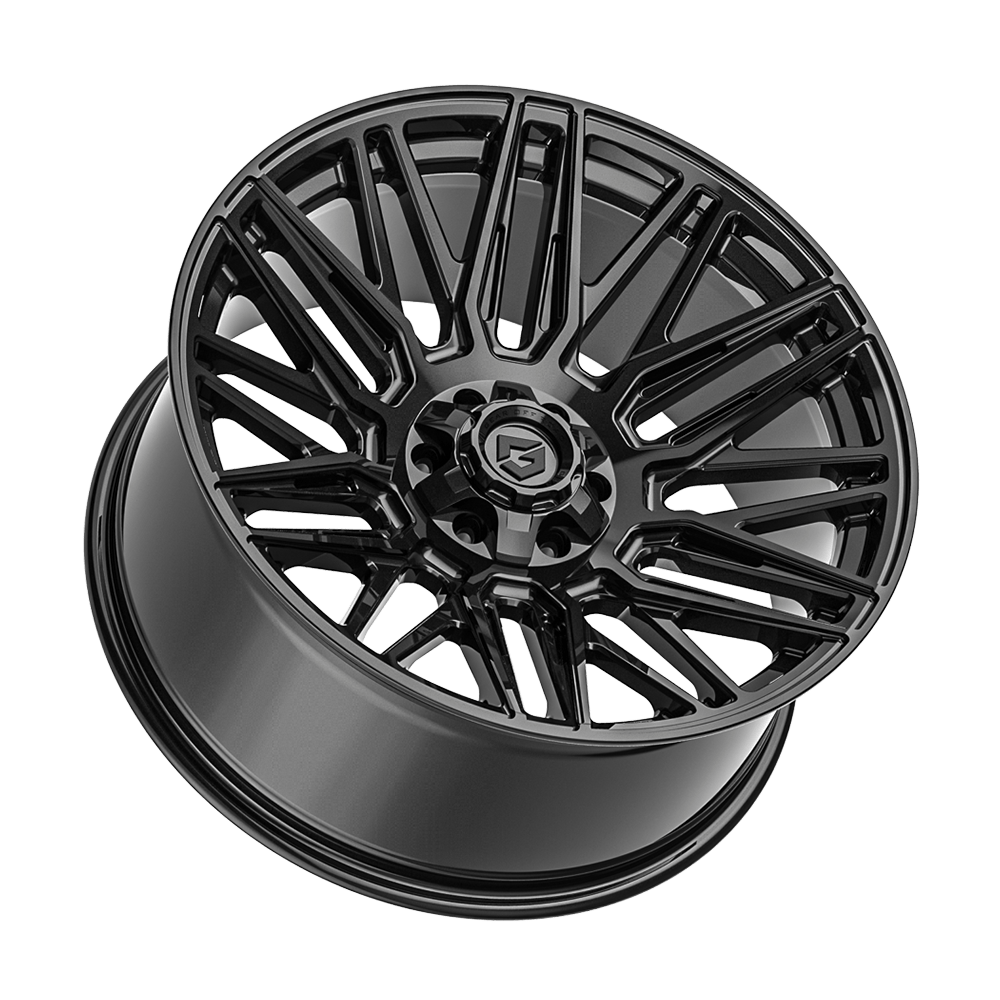

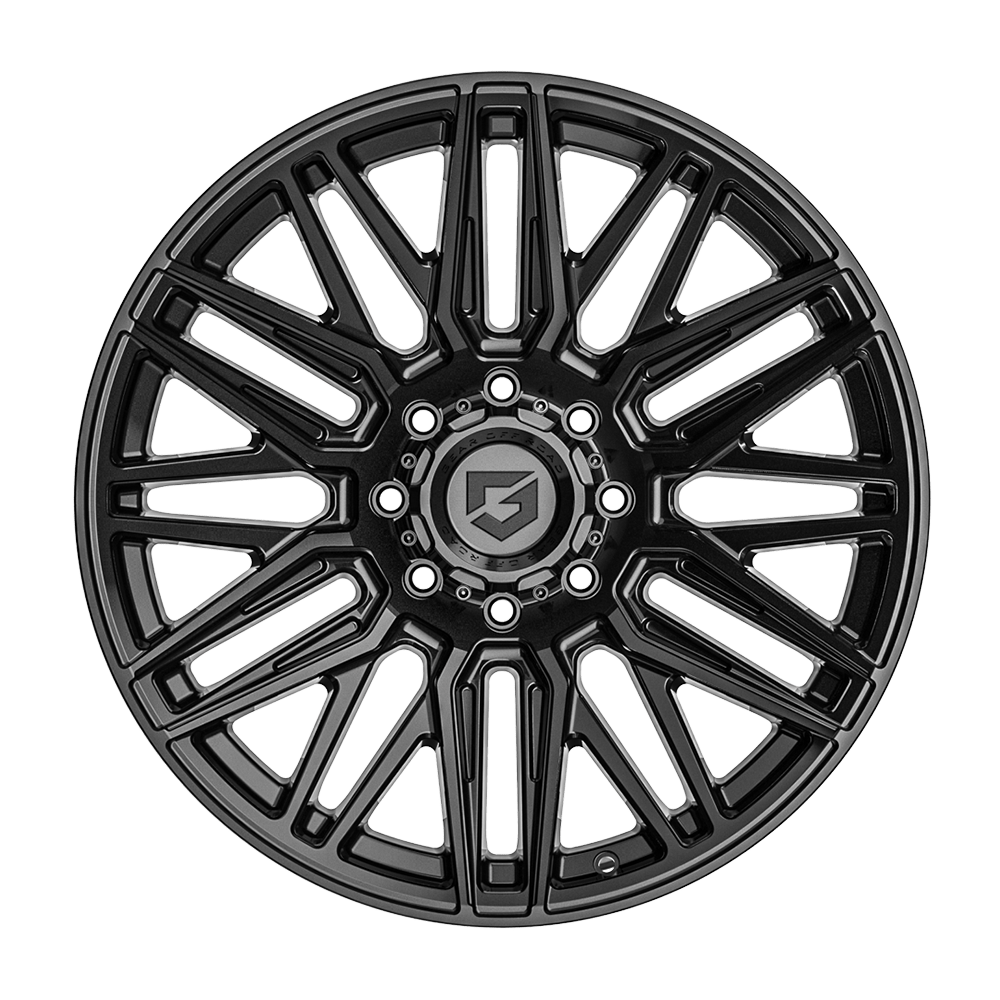

770 EDGE
GLOSS BLACK (B)
DIAMETERS
- 17"
- 18"
- 20"
- 22"
BOLT PATTERNS
- 5x150
- 5x5.00
- 5x5.50
- 6x135
- 6x5.50
- 8x170
- 8x180
- 8x6.50

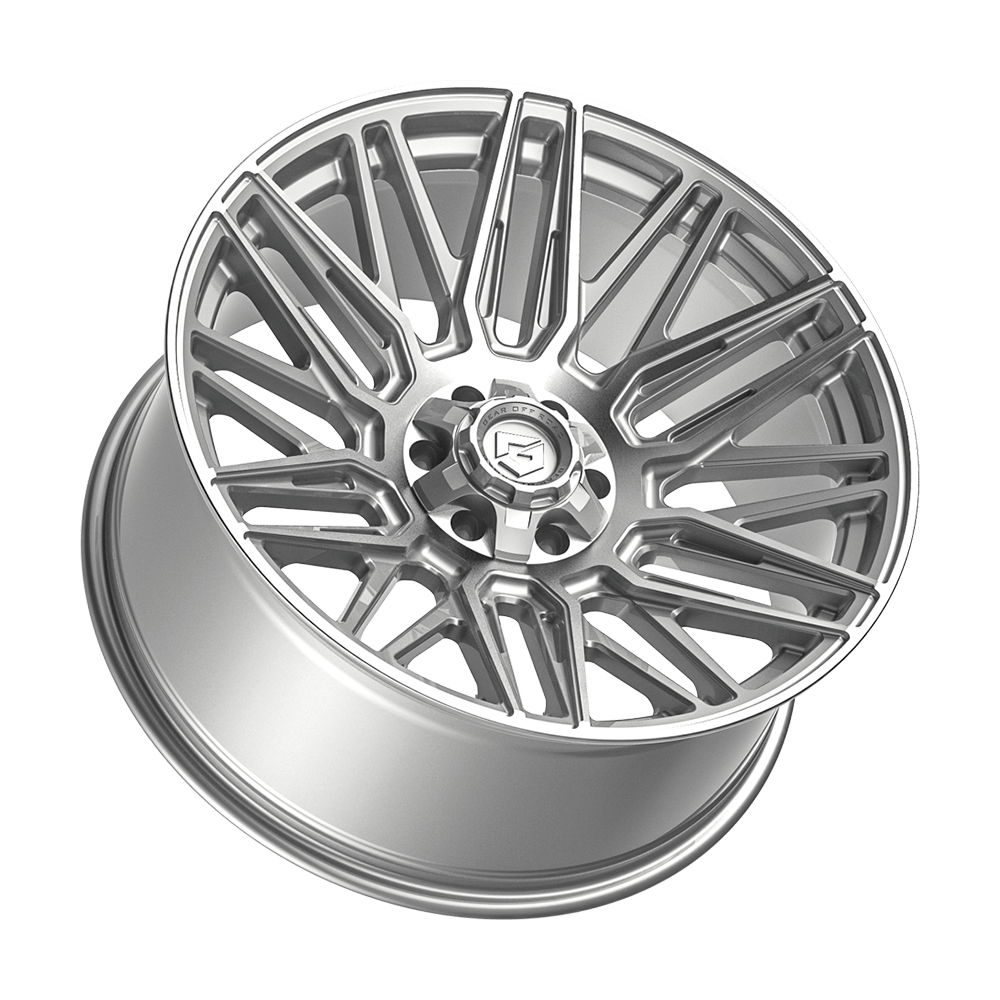

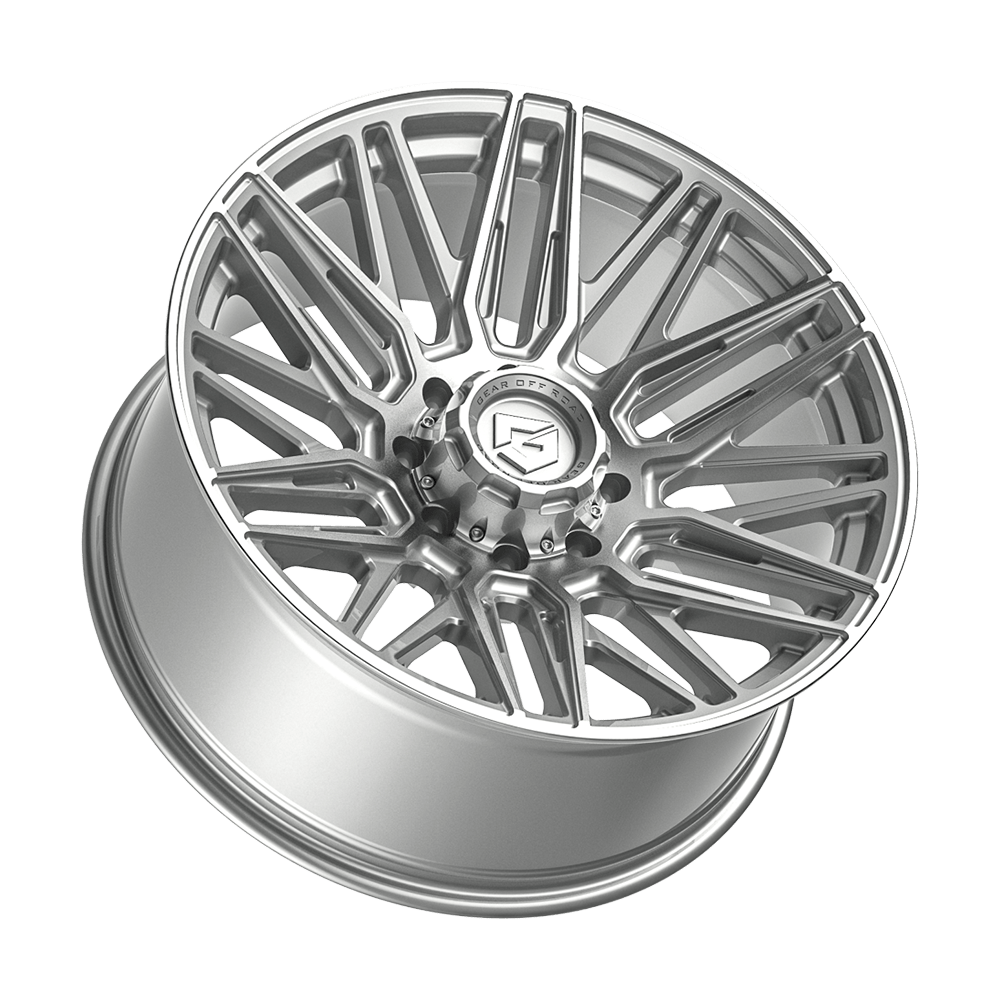

770 EDGE
BRUSHED SILVER (BS)
DIAMETERS
- 20"
- 22"
BOLT PATTERNS
- 5x150
- 5x5.00
- 5x5.50
- 6x135
- 6x5.50
- 8x170
- 8x180
- 8x6.50
U.S. PATENT PENDING
KEY FEATURES:
• Exceptionally Strong A356 Aluminum Alloy
• T6 Heat Treated for Maximum Strength
• Multi-leveled mesh design with deep concavity
• Available in Premium Finishes with Gloss Clear Coat for Added Protection
• Pop-In Center Cap with Signature Gear Off Road Logo
• Industry-Leading 2500 lb. to 3700 lb. Load Ratings
• Lifetime Structural Warranty & 1 Year Finish Warranty
OVERVIEW:
Starting from the lip and tracing down to the center portion of the wheel, the 770 Edge was designed with the intent to create a cutting-edge mesh design focused on deep concavity. The multi-leveled mesh design creates another layer of dimension. When looking closer at the details, the Edge has pocketed detailing for weight saving and to add the finishing touch to the design.
* Vehicles equipped with high-capacity axle options will require cap spacers to clear the cap (Applies to Ford Super Duty trucks only). Contact us for more info.
DIAMETER OPTIONS
20x9
20x10
22x10
SPECIFICATIONS
| Part number | Wheel size | Bolt pattern | Offset (MM) | Back Spacing | Hub bore (MM) | Load Rating | Cap | Lip Depth | MSRP | |
|---|---|---|---|---|---|---|---|---|---|---|
| 770B-2096818 | 20X9 | 6X135/6X5.50 | +18 | 5.71 | 106.20 | 2500 | CAP-6H-BB24 | N/A | $402.00 | |
| 770B-2098118 | 20X9 | 8X6.50 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $402.00 | |
| 770B-2098718 | 20X9 | 8X170 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $402.00 | |
| 770B-2098918 | 20X9 | 8X180 | +18 | 5.71 | 124.30 | 3700 | CAP-8L2-BB21 | N/A | $402.00 | |
| 770B-2106819 | 20X10 | 6X135/6X5.50 | -19 | 4.75 | 106.20 | 2500 | CAP-6H-BB24 | N/A | $434.00 | |
| 770B-2108119 | 20X10 | 8X6.50 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $434.00 | |
| 770B-2108719 | 20X10 | 8X170 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $434.00 | |
| 770B-2108919 | 20X10 | 8X180 | -19 | 4.75 | 124.30 | 3700 | CAP-8L2-BB21 | N/A | $434.00 | |
| 770B-2206810 | 22X10 | 6X135/6X5.50 | +10 | 5.89 | 106.20 | 2500 | CAP-6H-BB24 | N/A | $524.00 | |
| 770B-2206819 | 22X10 | 6X135/6X5.50 | -19 | 4.75 | 106.20 | 2500 | CAP-6H-BB24 | N/A | $524.00 | |
| 770B-2208119 | 22X10 | 8X6.50 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $524.00 | |
| 770B-2208719 | 22X10 | 8X170 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $524.00 | |
| 770B-2208919 | 22X10 | 8X180 | -19 | 4.75 | 124.30 | 3700 | CAP-8L2-BB21 | N/A | $524.00 | |
| 770B-2220944 | 22x12 | 5x5.00/5x5.50 | -44 | 4.77 | 78.10 | 2500 | CAP-5-BB24 | N/A | $538.00 | |
| 770B-2225244 | 22x12 | 5x5.50/5x150 | -44 | 4.77 | 110.20 | 2500 | CAP-5H-BB24 | N/A | $538.00 | |
| 770B-2226844 | 22x12 | 6x135/6x5.50 | -44 | 4.77 | 106.20 | 3700 | CAP-6H-BB24 | N/A | $538.00 | |
| 770B-2228144 | 22x12 | 8x6.50 | -44 | 4.77 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $538.00 | |
| 770B-2228744 | 22x12 | 8x170 | -44 | 4.77 | 125.20 | 3700 | CAP-8L2-BB21 | N/A | $538.00 | |
| 770B-2228944 | 22x12 | 8x180 | -44 | 4.77 | 124.30 | 3700 | CAP-8L2-BB21 | N/A | $538.00 | |
| 770B-7900900 | 17x9 | 5x5.00/5x5.50 | +00 | 5.00 | 78.10 | 2500 | CAP-5-BB24 | N/A | $312.00 | |
| 770B-7906800 | 17x9 | 6x135/6x5.50 | +00 | 5.00 | 106.20 | 3700 | CAP-6H-BB24 | N/A | $312.00 | |
| 770B-7906818 | 17x9 | 6x135/6x5.50 | +18 | 5.71 | 106.20 | 3700 | CAP-6H-BB24 | N/A | $312.00 | |
| 770B-8900900 | 18x9 | 5x5.00/5x5.50 | +00 | 5.00 | 78.10 | 2500 | CAP-5-BB24 | N/A | $352.00 | |
| 770B-8906800 | 18x9 | 6x135/6x5.50 | +00 | 5.00 | 106.20 | 3700 | CAP-6H-BB24 | N/A | $352.00 | |
| 770B-8906818 | 18x9 | 6x135/6x5.50 | +18 | 5.71 | 106.20 | 3700 | CAP-6H-BB24 | N/A | $352.00 | |
| 770BM-2096818 | 20X9 | 6X135/6X5.50 | +18 | 5.71 | 106.20 | 2500 | CAP-6H-B24 | N/A | $438.00 | |
| 770BM-2098118 | 20X9 | 8X6.50 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $438.00 | |
| 770BM-2098718 | 20X9 | 8X170 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $438.00 | |
| 770BM-2098918 | 20X9 | 8X180 | +18 | 5.71 | 124.30 | 3700 | CAP-8L2-B21 | N/A | $438.00 | |
| 770BM-2106819 | 20X10 | 6X135/6X5.50 | -19 | 4.75 | 106.20 | 2500 | CAP-6H-B24 | N/A | $468.00 | |
| 770BM-2108119 | 20X10 | 8X6.50 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $468.00 | |
| 770BM-2108719 | 20X10 | 8X170 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $468.00 | |
| 770BM-2108919 | 20X10 | 8X180 | -19 | 4.75 | 124.30 | 3700 | CAP-8L2-B21 | N/A | $468.00 | |
| 770BM-2206810 | 22X10 | 6X135/6X5.50 | +10 | 5.89 | 106.20 | 2500 | CAP-6H-B24 | N/A | $392.00 | |
| 770BM-2206819 | 22X10 | 6X135/6X5.50 | -19 | 4.75 | 106.20 | 2500 | CAP-6H-B24 | N/A | $392.00 | |
| 770BM-2208119 | 22X10 | 8X6.50 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $392.00 | |
| 770BM-2208719 | 22X10 | 8X170 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $392.00 | |
| 770BM-2208919 | 22X10 | 8X180 | -19 | 4.75 | 124.30 | 3700 | CAP-8L2-B21 | N/A | $392.00 | |
| 770BM-2220944 | 22x12 | 5x5.00/5x5.50 | -44 | 4.77 | 78.10 | 2500 | CAP-5-B24 | N/A | $576.00 | |
| 770BM-2225244 | 22x12 | 5x5.50/5x150 | -44 | 4.77 | 110.20 | 2500 | CAP-5H-B24 | N/A | $576.00 | |
| 770BM-2226844 | 22x12 | 6x135/6x5.50 | -44 | 4.77 | 106.20 | 3700 | CAP-6H-B24 | N/A | $576.00 | |
| 770BM-2228144 | 22x12 | 8x6.50 | -44 | 4.77 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $576.00 | |
| 770BM-2228744 | 22x12 | 8x170 | -44 | 4.77 | 125.20 | 3700 | CAP-8L2-B21 | N/A | $576.00 | |
| 770BM-2228944 | 22x12 | 8x180 | -44 | 4.77 | 124.30 | 3700 | CAP-8L2-B21 | N/A | $576.00 | |
| 770BM-7900900 | 17x9 | 5x5.00/5x5.50 | +00 | 5.00 | 78.10 | 2500 | CAP-5-B24 | N/A | $318.00 | |
| 770BM-7906800 | 17x9 | 6x135/6x5.50 | +00 | 5.00 | 106.20 | 3700 | CAP-6H-B24 | N/A | $318.00 | |
| 770BM-7906818 | 17x9 | 6x135/6x5.50 | +18 | 5.71 | 106.20 | 3700 | CAP-6H-B24 | N/A | $318.00 | |
| 770BM-8900900 | 18x9 | 5x5.00/5x5.50 | +00 | 5.00 | 78.10 | 2500 | CAP-5-B24 | N/A | $380.00 | |
| 770BM-8906800 | 18x9 | 6x135/6x5.50 | +00 | 5.00 | 106.20 | 3700 | CAP-6H-B24 | N/A | $380.00 | |
| 770BM-8906818 | 18x9 | 6x135/6x5.50 | +18 | 5.71 | 106.20 | 3700 | CAP-6H-B24 | N/A | $380.00 | |
| 770BS-2096818 | 20X9 | 6x135/6x5.50 | +18 | 5.71 | 106.20 | 2500 | CAP-6H-SC24 | N/A | $438.00 | |
| 770BS-2098118 | 20X9 | 8x6.50 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $438.00 | |
| 770BS-2098718 | 20X9 | 8x170 | +18 | 5.71 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $438.00 | |
| 770BS-2098918 | 20X9 | 8x180 | +18 | 5.71 | 124.30 | 3700 | CAP-8L2-SC21 | N/A | $438.00 | |
| 770BS-2106819 | 20X10 | 6x135/6x5.50 | -19 | 4.75 | 106.20 | 2500 | CAP-6H-SC24 | N/A | $468.00 | |
| 770BS-2108119 | 20X10 | 8x6.50 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $468.00 | |
| 770BS-2108719 | 20X10 | 8x170 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $468.00 | |
| 770BS-2108919 | 20X10 | 8x180 | -19 | 4.75 | 124.30 | 3700 | CAP-8L2-SC21 | N/A | $468.00 | |
| 770BS-2206810 | 22x10 | 6x135/6x5.50 | +10 | 5.89 | 106.20 | 2500 | CAP-6H-SC24 | N/A | $558.00 | |
| 770BS-2206819 | 22x10 | 6x135/6x5.50 | -19 | 4.75 | 106.20 | 2500 | CAP-6H-SC24 | N/A | $558.00 | |
| 770BS-2208119 | 22x10 | 8x6.50 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $558.00 | |
| 770BS-2208719 | 22x10 | 8x170 | -19 | 4.75 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $558.00 | |
| 770BS-2208919 | 22x10 | 8x180 | -19 | 4.75 | 124.30 | 3700 | CAP-8L2-SC21 | N/A | $558.00 | |
| 770BS-2220944 | 22x12 | 5x5.00/5x5.50 | -44 | 4.77 | 78.10 | 2500 | CAP-5-SC24 | N/A | $576.00 | |
| 770BS-2225244 | 22x12 | 5x5.50/5x150 | -44 | 4.77 | 110.20 | 2500 | CAP-5H-SC24 | N/A | $576.00 | |
| 770BS-2226844 | 22x12 | 6x135/6x5.50 | -44 | 4.77 | 106.20 | 3700 | CAP-6H-SC24 | N/A | $576.00 | |
| 770BS-2228144 | 22x12 | 8x6.50 | -44 | 4.77 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $576.00 | |
| 770BS-2228744 | 22x12 | 8x170 | -44 | 4.77 | 125.20 | 3700 | CAP-8L2-SC21 | N/A | $576.00 | |
| 770BS-2228944 | 22x12 | 8x180 | -44 | 4.77 | 124.30 | 3700 | CAP-8L2-SC21 | N/A | $576.00 | |
