PATENT PENDING
KEY FEATURES:
• Exceptionally Strong A356 Aluminum Alloy
• T6 Heat Treated for Maximum Strength
• Bolt-on Center Cap with Signature Gear Off Road Logo
• Full Machined Face Or Gloss Black Mesh Spoke Design
• Deep Lip with Dual Debossed “Gear Off Road” Name
• Available in Premium Finishes with Gloss Clear Coat for Added Protection
• Industry-Leading 2500 lb. to 3700 lb. Load Ratings
• Lifetime Structural Warranty & 1 Year Finish Warranty
OVERVIEW:

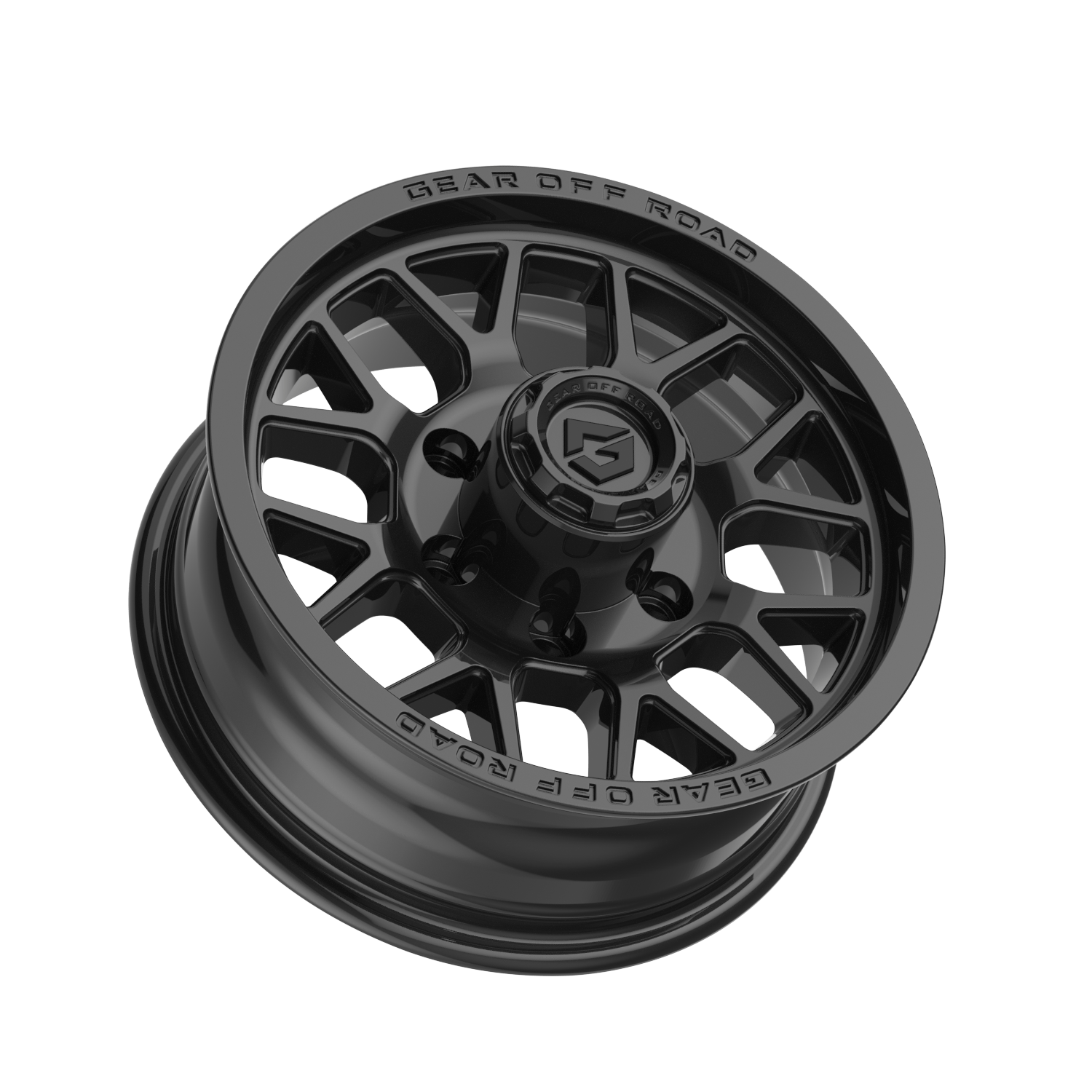

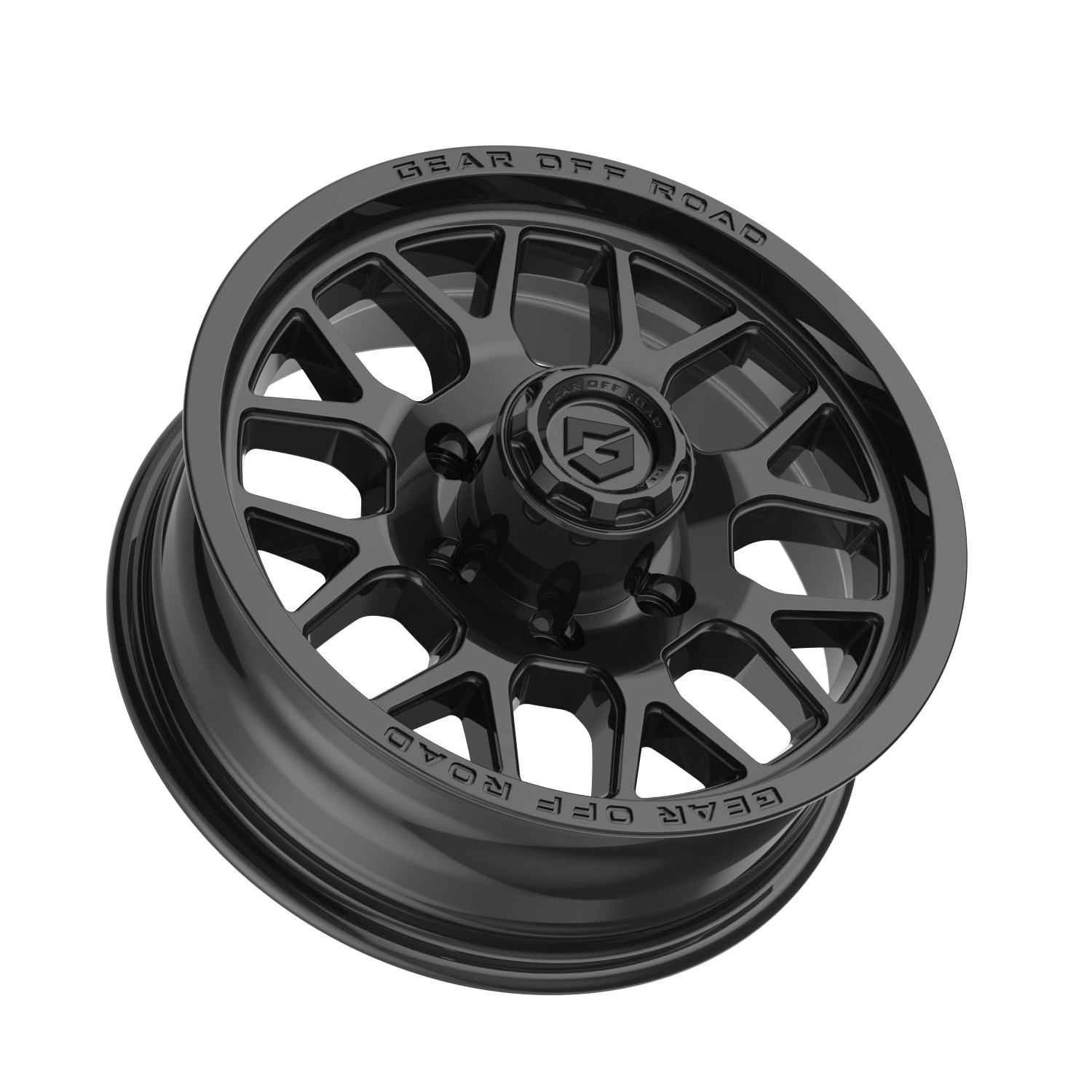

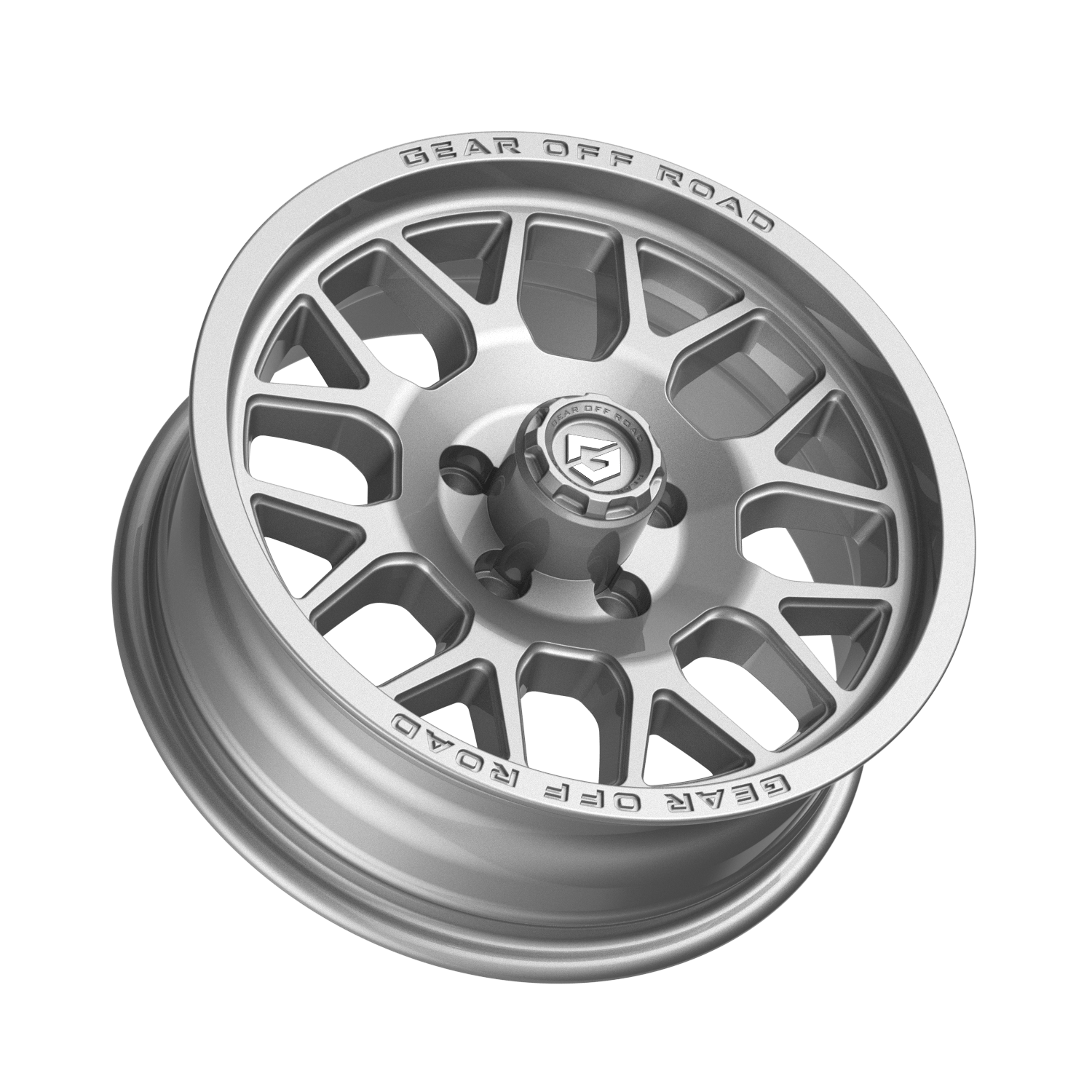

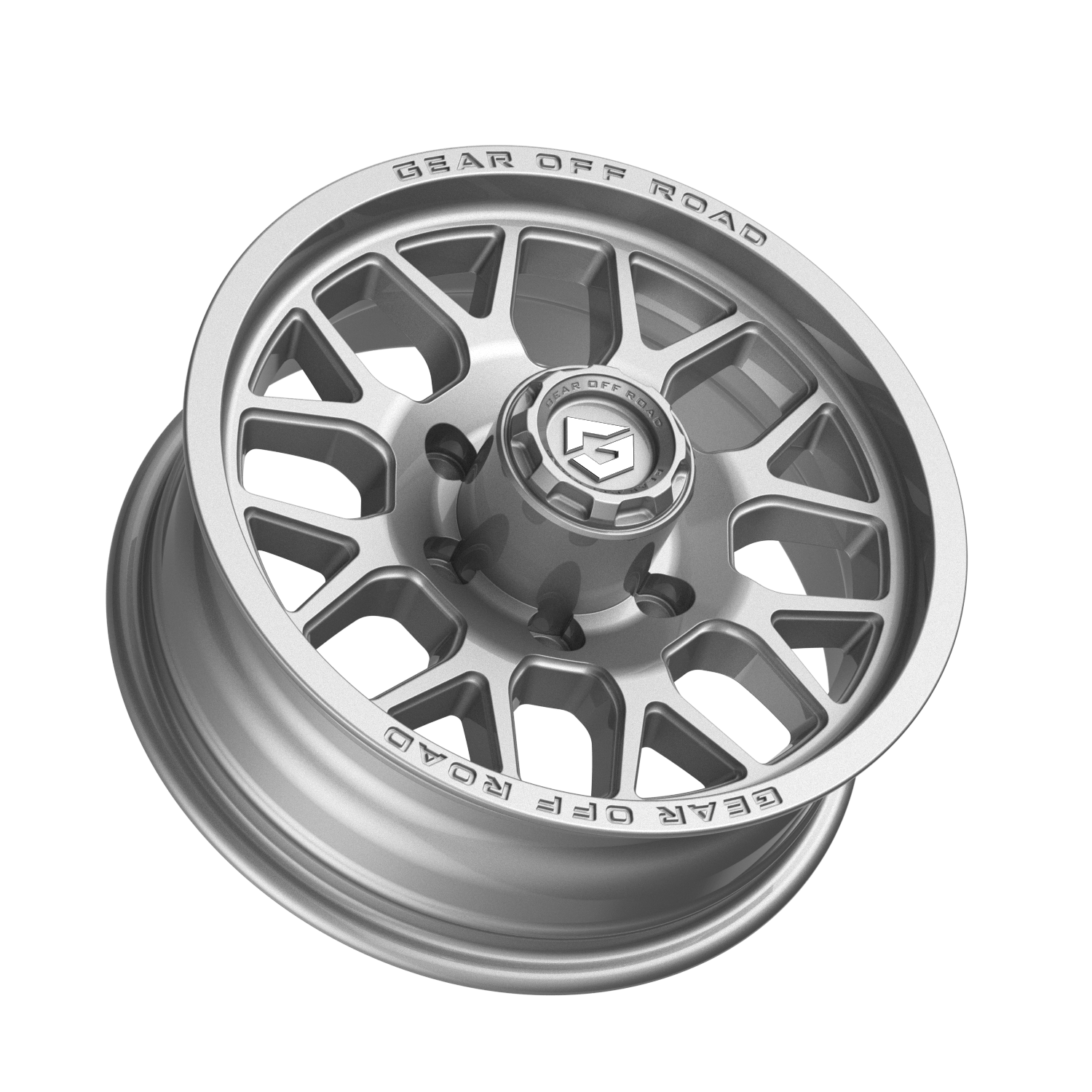

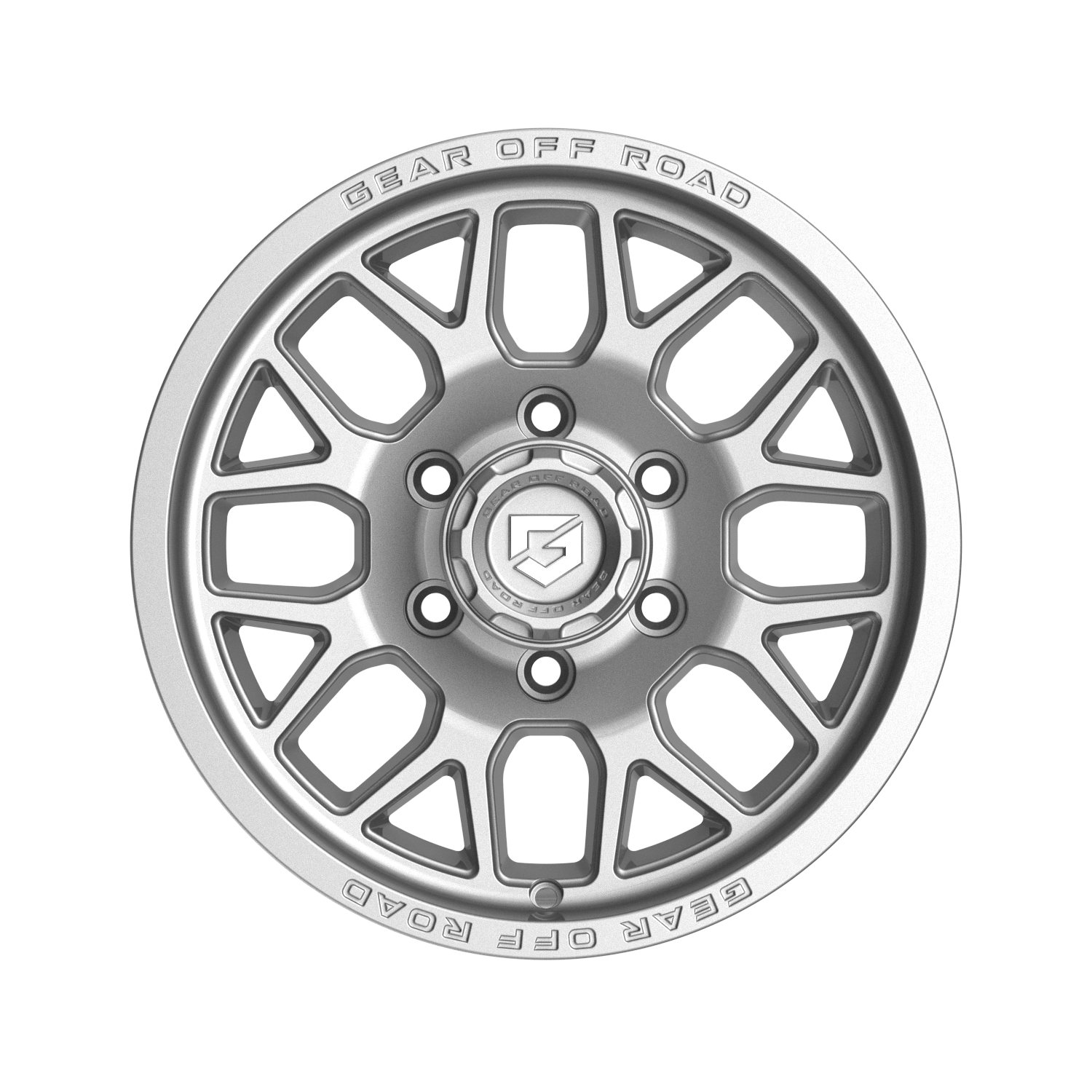

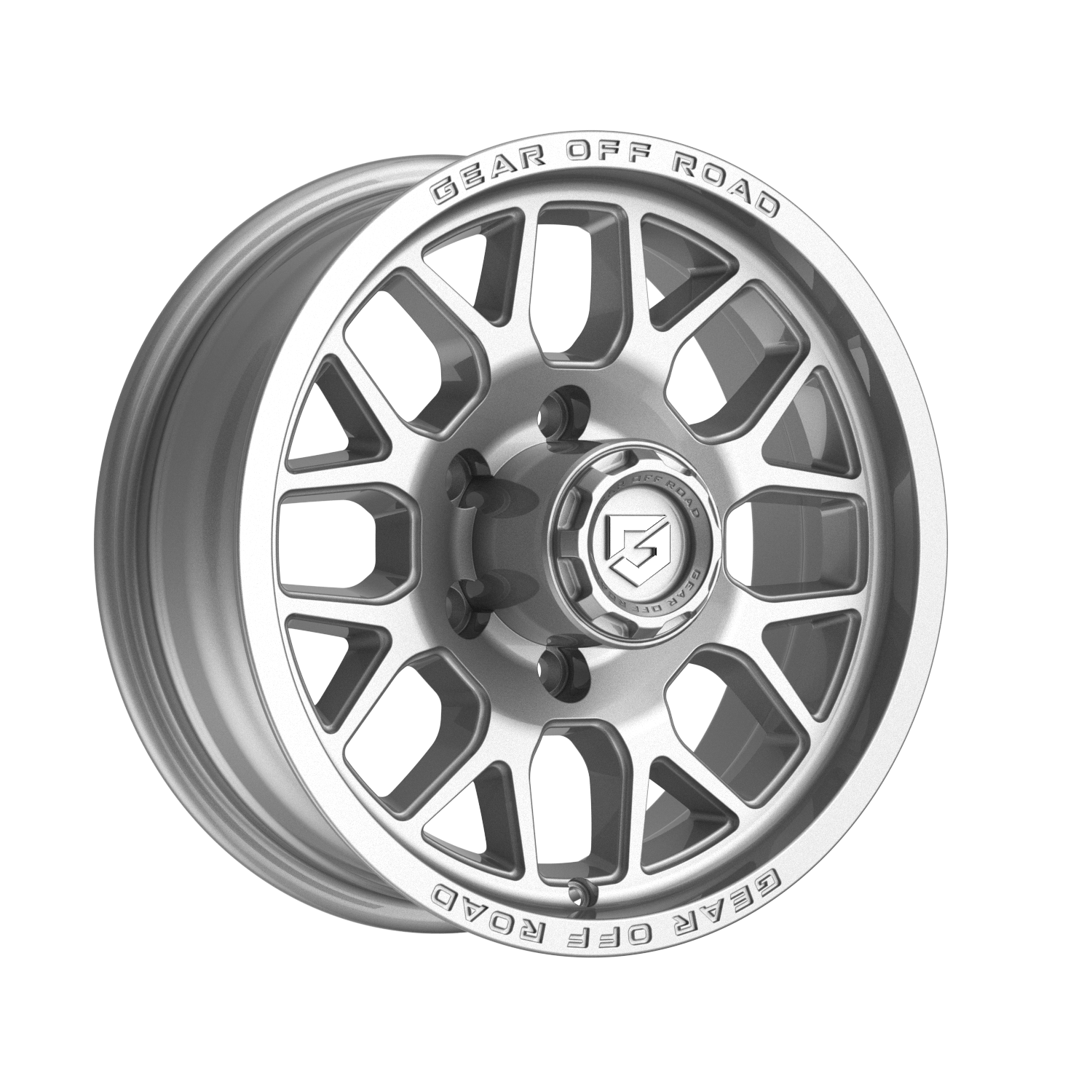

Our iconic 763 wheel design has been reengineered for trailers. It still features the same recognizable 8-mesh pattern but is now built specifically for the demands of trailer applications. Like the 763 Truck version, the trailer edition continues to resemble the bigger brother with its small yet mighty deep-lip. This wheel also is dual debossed with our “Gear Off Road” name. Whether you prefer gloss black trailer wheels or clean gloss silver trailer wheels the 763 Raid will be the perfect choice for your trailer.
DIAMETER OPTIONS
15"
16"
SPECIFICATIONS
| Part number | Wheel size | Bolt pattern | Offset (MM) | Back Spacing | Hub bore (MM) | Load Rating | Cap | Lip Depth | MSRP | |
|---|---|---|---|---|---|---|---|---|---|---|
| 763B-5606500 | 15x6 | 5x4.50 | +00 | 3.5 | 81.03 | 2800 | CAP-5L-BB24 | 1.58 | ||
| 763B-5608300 | 15x6 | 6x5.50 | +00 | 3.5 | 108 | 2800 | CAP-6L-BB24 | 1.58 | ||
| 763B-6608300 | 16x6 | 6x5.50 | +00 | 3.5 | 108 | 3200 | CAP-6L-BB24 | 1.58 | ||
| 763S-5606500 | 15x6 | 5x4.50 | +00 | 3.5 | 81.03 | 2800 | CAP-5L-S24 | 1.58 | ||
| 763S-5608300 | 15x6 | 6x5.50 | +00 | 3.5 | 108 | 2800 | CAP-6L-S24 | 1.58 | ||
| 763S-6608300 | 16x6 | 6x5.50 | +00 | 3.5 | 108 | 3200 | CAP-6L-S24 | 1.58 | ||
