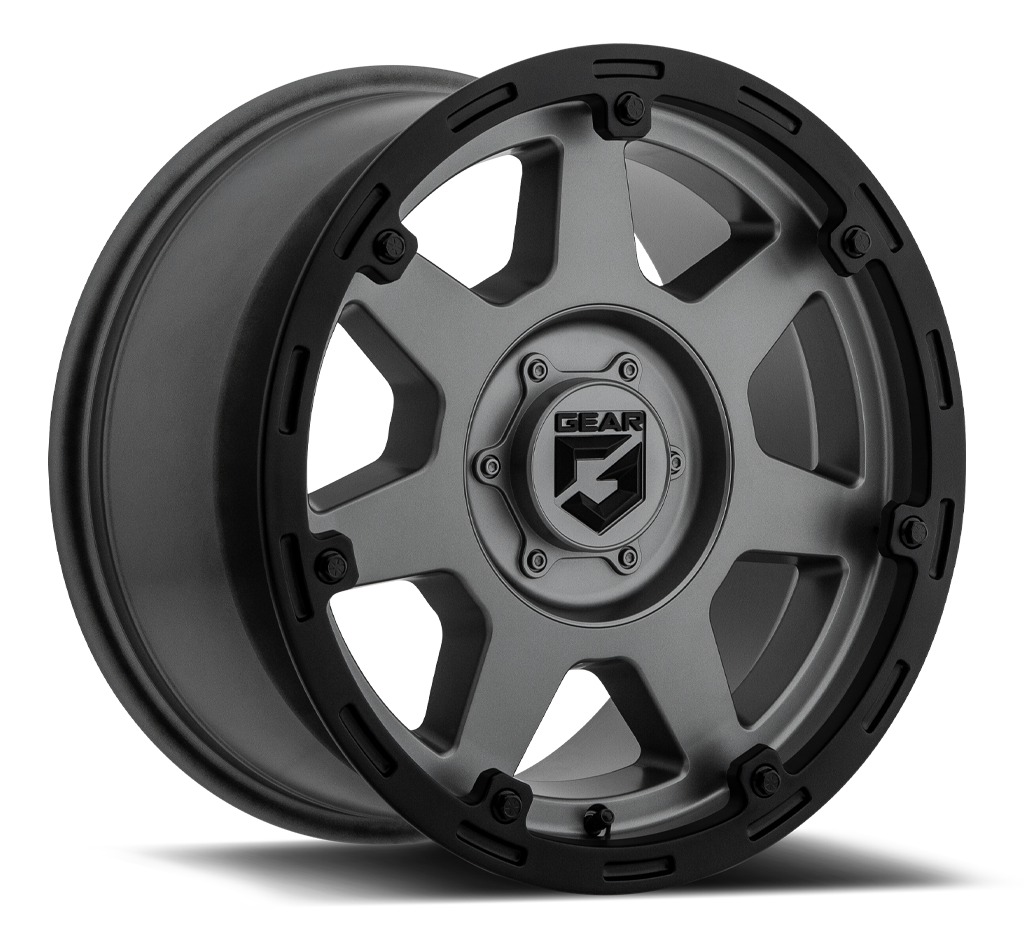

753 Barricade
Notice: Trying to get property 'name' of non-object in /nas/content/live/gearoffroad/wp-content/themes/gear-off-road/single-wheels.php on line 138
DIAMETERS
BOLT PATTERNS
DIAMETER OPTIONS
20"
17"
16"
SPECIFICATIONS
| Part Number | Wheel Size | Bolt Circle | Bolt Circle 2 | Offset (mm) | Back Spacing | Hub Bore (mm) | Load Rating | Cap |
|---|---|---|---|---|---|---|---|---|
| 753GB-6800500 | 16x8 | 5x4.50 | 5x5.00 | 0 | 4.5 | 78.00mm | 2500 | CAP-GA6-A19 |
| 753GB-7900500 | 17x9 | 5x4.50 | 5x5.00 | 0 | 4.5 | 78.00mm | 2500 | CAP-GA6-A19 |
| 753GB-2100525 | 20x10 | 5x4.50 | 5x5.00 | -25 | 4.52 | 78.00mm | 2500 | CAP-GA6-A19 |
| 753SB-6800500 | 16x8 | 5x4.50 | 5x5.00 | 0 | 4.5 | 78.00mm | 2500 | CAP-GA6-B19 |
| 753SB-6808400 | 16x8 | 6x5.50 | 0 | 4.5 | 108.00mm | 2500 | CAP-GA6-B19 | |
| 753SB-6808100 | 16x8 | 8x6.50 | 0 | 4.5 | 125.20mm | 3700 | CAP-GA8-B19 | |
| 753SB-7900500 | 17x9 | 5x4.50 | 5x5.00 | 0 | 4.5 | 78.00mm | 2500 | CAP-GA6-B19 |
| 753SB-7906818 | 17x9 | 6x135 | 6x5.50 | 18 | 5.71 | 108.00mm | 2500 | CAP-GA6-B19 |
| 753SB-7908118 | 17x9 | 8x6.50 | 18 | 5.71 | 125.20mm | 3700 | CAP-GA8-B19 | |
| 753SB-2100525 | 20x10 | 5x4.50 | 5x5.00 | -25 | 4.52 | 78.00mm | 2500 | CAP-GA6-B19 |
| 753SB-2108425 | 20x10 | 6x135 | 6x5.50 | -25 | 4.52 | 108.00mm | 2500 | CAP-GA6-B19 |
| 753SB-2108125 | 20x10 | 8x6.50 | -25 | 4.52 | 125.20mm | 3700 | CAP-GA8-B19 |
